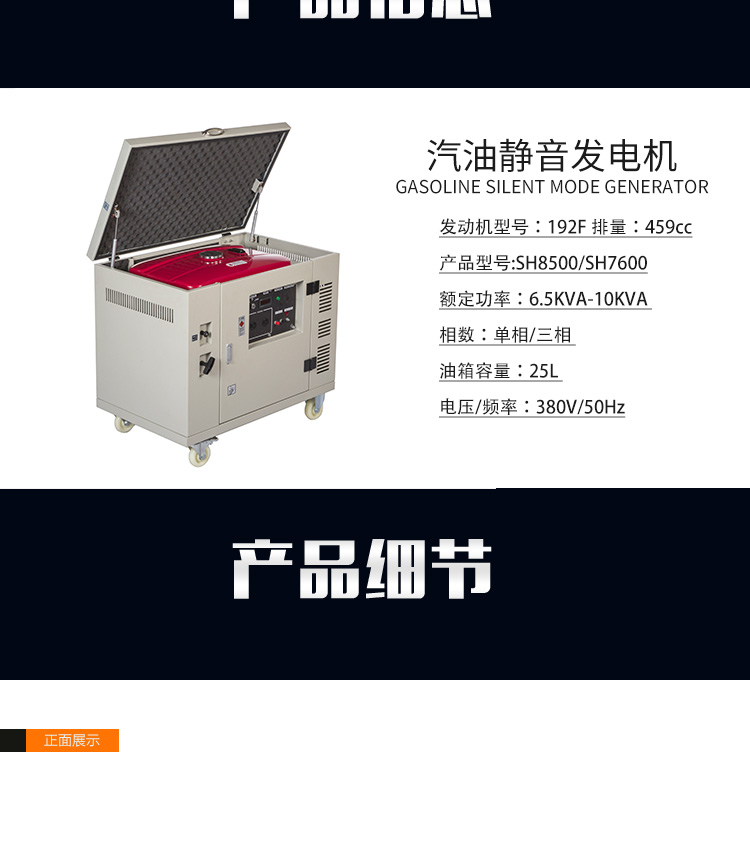

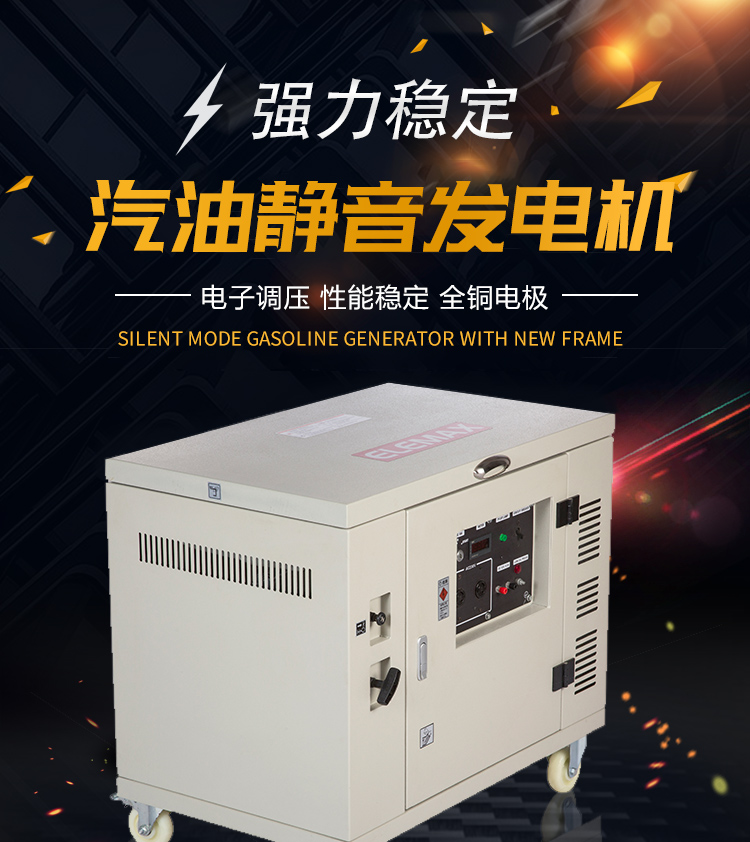

Gasoline Generator SH7600S Silent Mode--Gasoline Generator--Products--LILI MACHINERY CO.,LTD.

Features

Specifications

Rated AC Voltage/AC Frequency/Rotational Speed220V/50Hz/3000rpm
ModelGX390
Engine Type4-stroke single cylinder, air cooled OHC
Rated Current(A)25.5A
Bore x Stroke(mm)88x64mm
Displacement(cc)389cc
Maximum Power Output (HP/KW)13HP/3000rpm

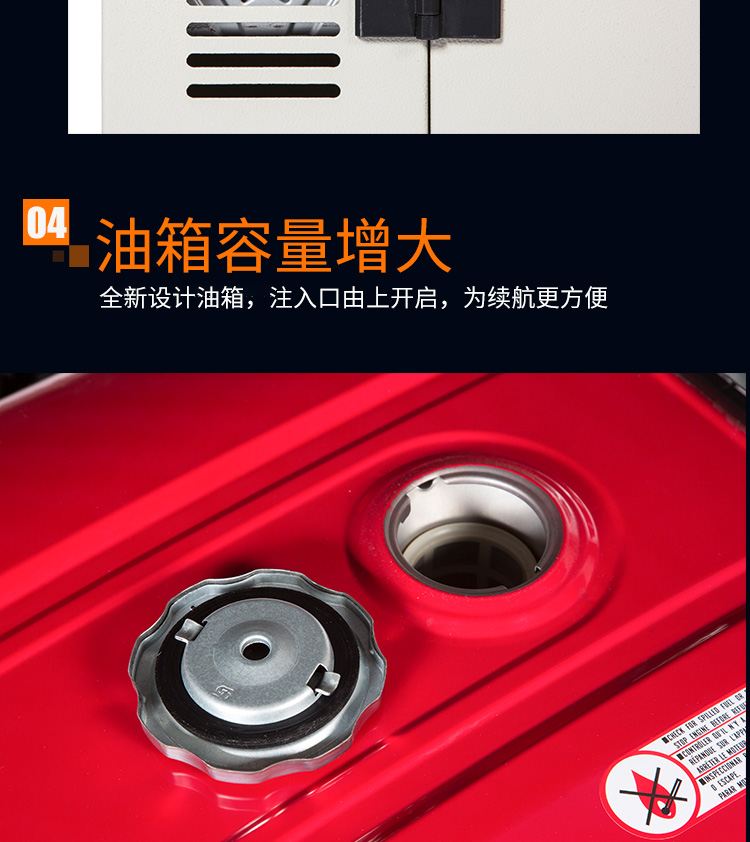

Fuel Tank Capacity(L)25L
Engine Oil Capacity(L)1.1L
Alternator TypeBrush, self exciting, synchronous, field rotating type, 2-pole

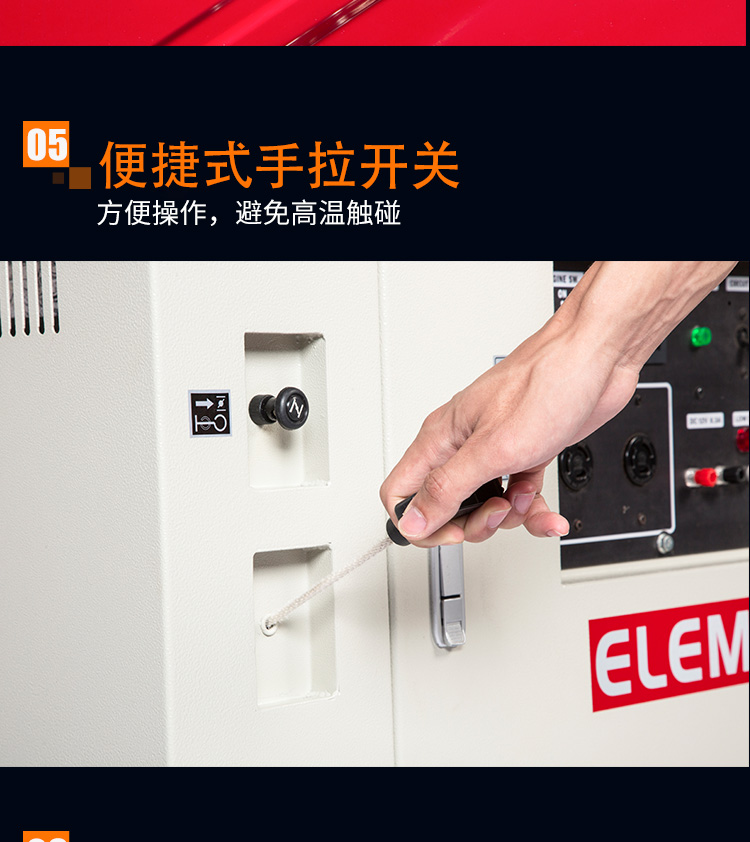

Starting SystemElectric/Recoil Start
Oil Alert SystemYes
Generator typeSelf-excited bipolar rotating magnetic field
Voltage RegulationDigital AVR
Rated Output(Kva)5.6kva
Max Output(Kva)6.5kva
DC Output(V/A)12V/8.3A
Power Factor(COS)1
Full Load Continuous Working Period(h)8
Sound Pressure Level @7(dB)48
Net Weight/Gross Weight(KG)140/144kg
Dimensions (mm)825x550x640mm
Package Dimensions (mm)860x590x750mm

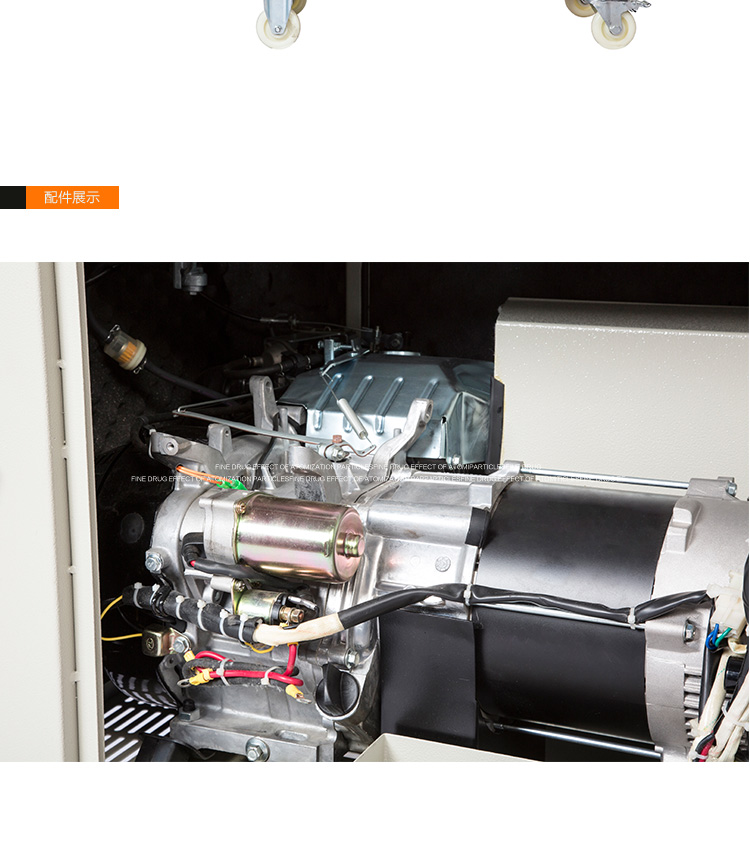

Detailed
